Moduflex+1U 6.4kW Solar Power Core

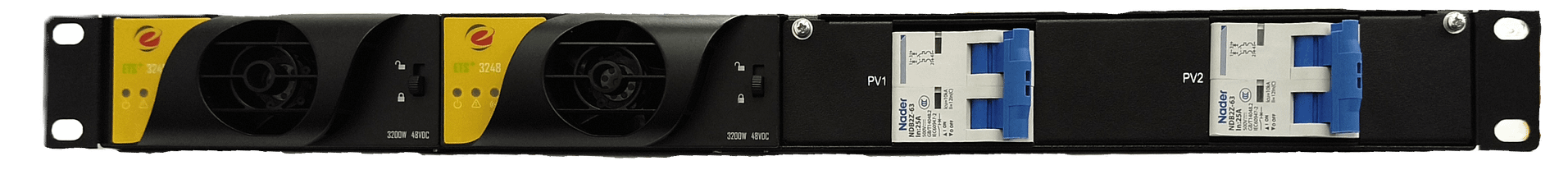

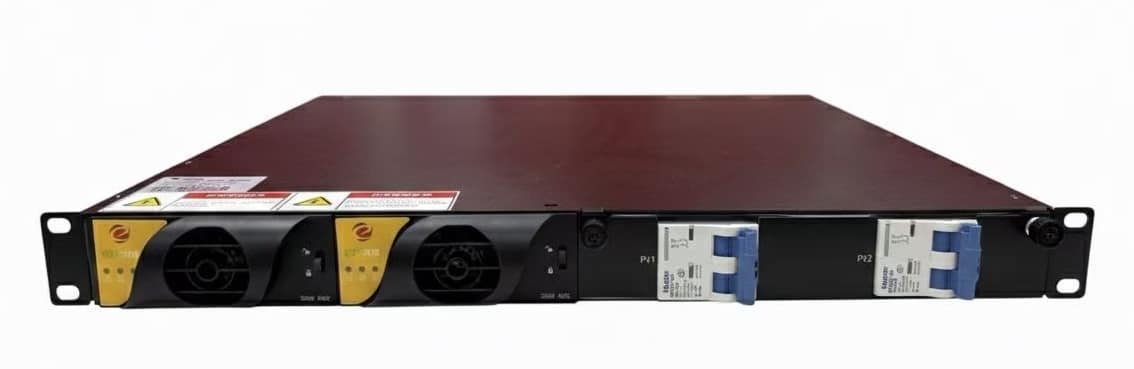

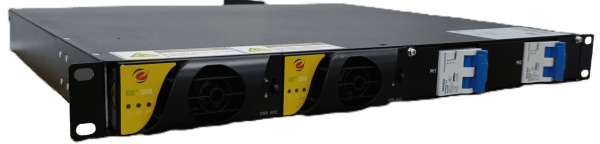

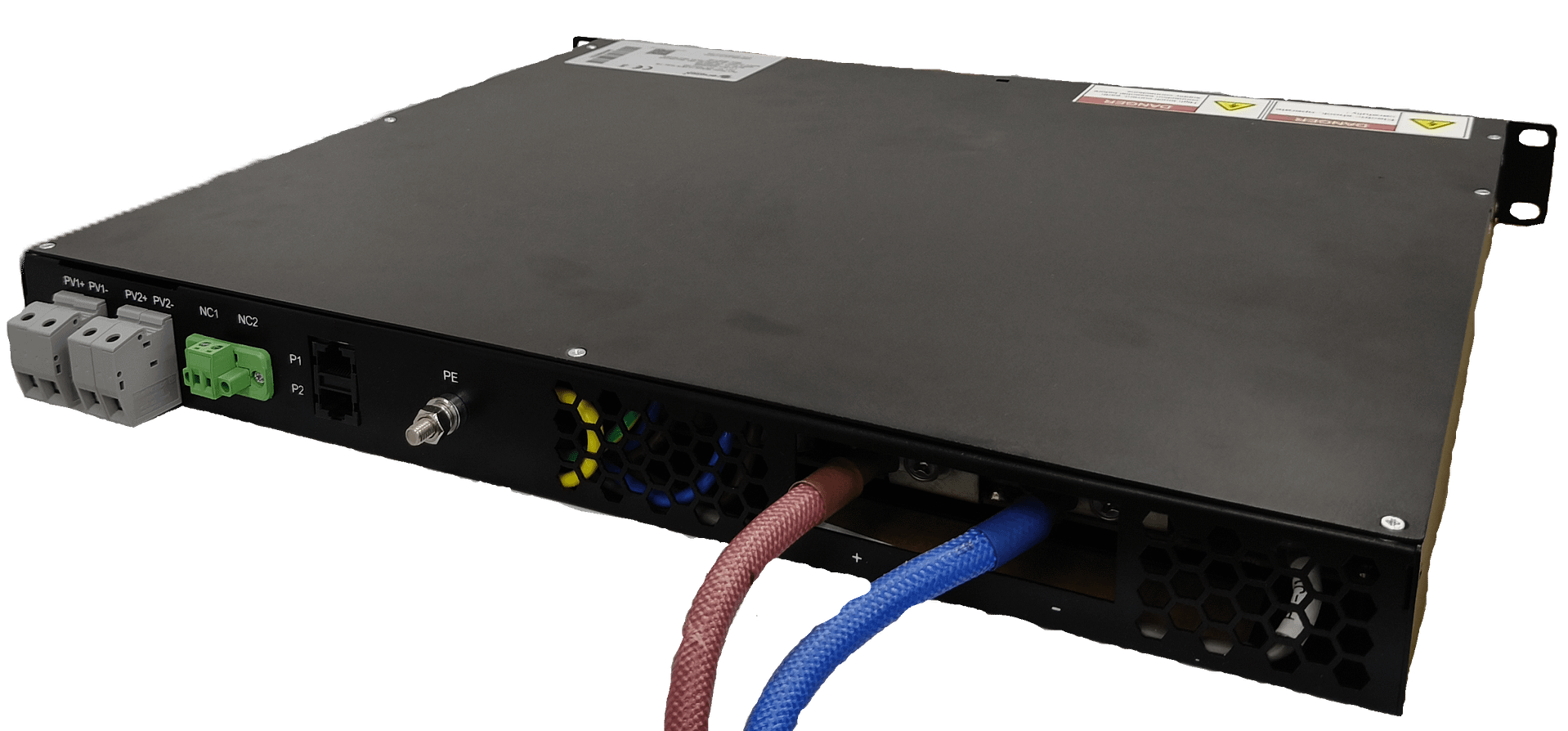

Moduflex+1U 6.4kW Solar Power Core
Moduflex+1U 6.4kW Solar Power Core - Image 2
Moduflex+1U 6.4kW Solar Power Core - Image 3
Moduflex+1U 6.4kW Solar Power Core - Image 4

Moduflex+1U 6.4kW Solar Power Core

Model: Moduflex+ 6.4kW (Solar) – Power Core

The Moduflex+ Power Core series offers a simple, modular and scalable power system solution with outstanding performance for critical mission applications to ensure the operation remains functional and uninterrupted using solar as backup source or complimentary source. The system can be added to existing enetek rectifiers with SMU01 controller to change it to a hybrid solution.

Part Number DC Input Voltage DC Output Output Power Height
SPC70201.002 85 -430VDC 48Vdc 6.4kW (ETS+) 1U

Download the datasheet for more information about the technical aspects.



Datasheet Download
Datasheet Download
Loading...

Description

Key Features

  • Wide MPPT Range
  • Wide Temperature Range
  • Modular and Scalable Design
  • Highly Efficient @ 97%
  • PV Input Ground Fault Detection
  • Excellent EMC Performance
  • Compliant with Global Standards
  • can be connected to existing site with SMU01 Intelligent Controller
  • Can add to existing ETR+ 2048 / 3048 Rectifier modules running under powercore.
